Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils

Name: Electric Decoiler 3000kg Capacity Type For Fasten amp Uncoil Small Steel Coils
Brand: Believe Industry Company
Price: 1 USD

China Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils wholesale

Brand Name : Believe Industry Company

Model Number : 3Ton Electric Decoiler

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Supply Ability : 50 sets per month

Delivery Time : 15 to 20 days

Packaging Details : Wrapped With Plastic Film

Capacity : 3000kg

Decoiler Mandrel Expansion : Manual Adjust

Decoiling : Elextric Decoiling

Motor Power : 3kw

Contact Now

3Ton Electric Decoiler

Brief Description

3Ton electric decoiler can be used to fasten and uncoil small steel coils. It is a necessary part for roll forming line. Body of this decoiler is U-beam steel and steel plate welded structure. Main components are shaft, decoiler expansion and tension mandrel, electric motor and electric control box.

Main Parameters

1	Decoiler Mandrel Expansion And Tension	Manual expansion and tension
2	Decoiling Type	Electric decoiling
3	Decoiling Power	3kw
4	Expansion Range	480-520mm
5	Coil I.D	508mm is suitable
6	Coil O.D	Max 1200mm
7	Coil Width	Max 500mm
8	Capacity	3000kg

Difference Between 3Ton Electric Decoiler, 3Ton Manual Decoiler And 3Ton Hydraulic Decoiler

Decoiler	3Ton Manual Decoiler	3Ton Electric Decoiler	3Ton Hydraulic Decoiler
1. Capacity	3000kg	3000kg	3000kg
2. Type	Manual	Semi-Automatic	Automatic
3. Mandrel Expansion	Manual Adjust	Manual Adjust	Hydraulic Cylinder
4. Decoiling	Non Powered	Electric Drive	Electric Drive
5. Decoiling Speed	Roll Forming Speed	15m/min	15m/min
6. Price	USD2,000	USD5,000	USD6,000

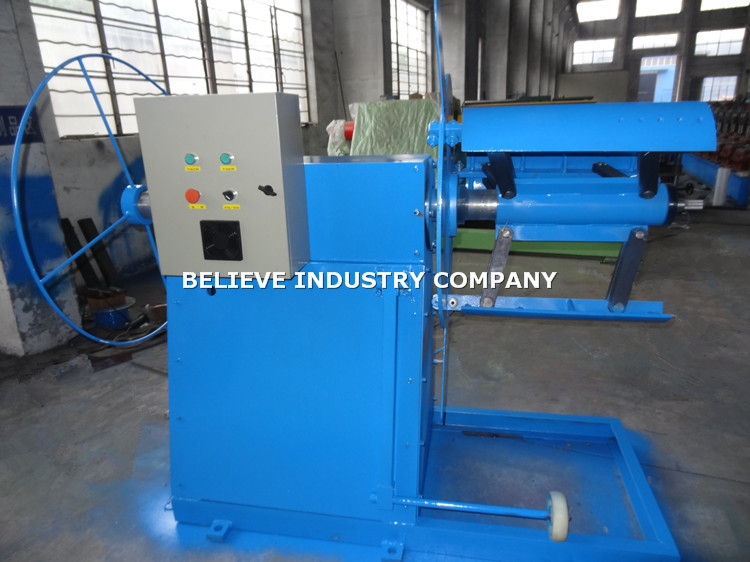

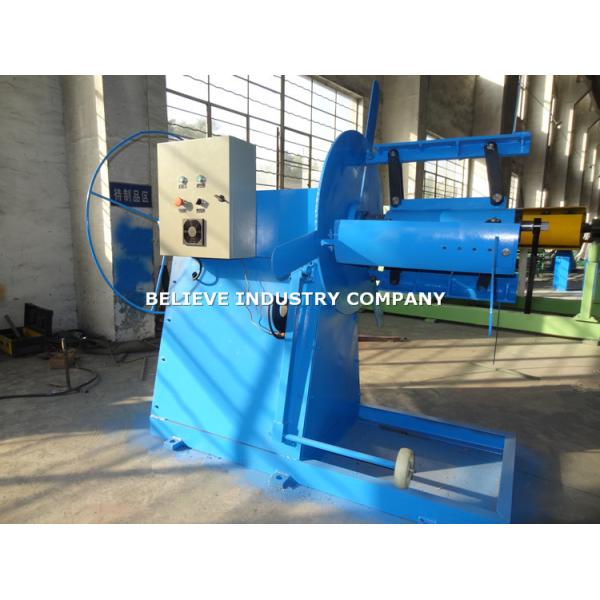

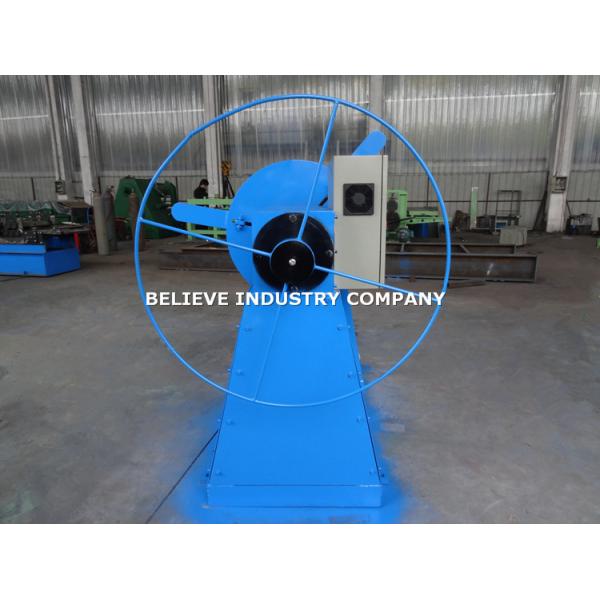

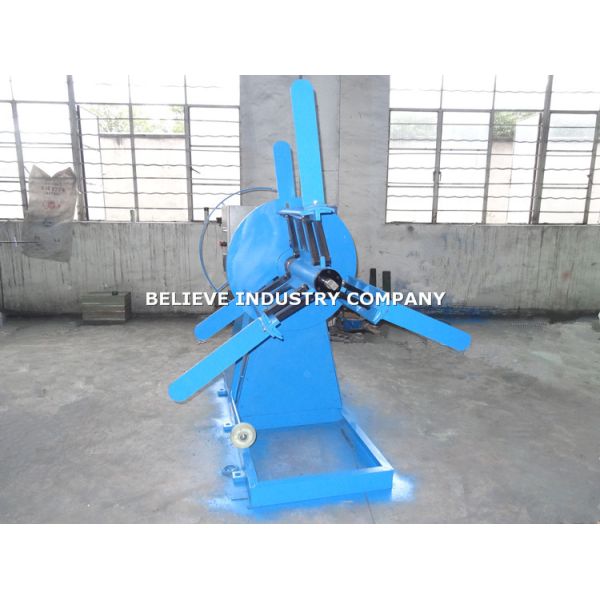

More Pictures For Reference

Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils
